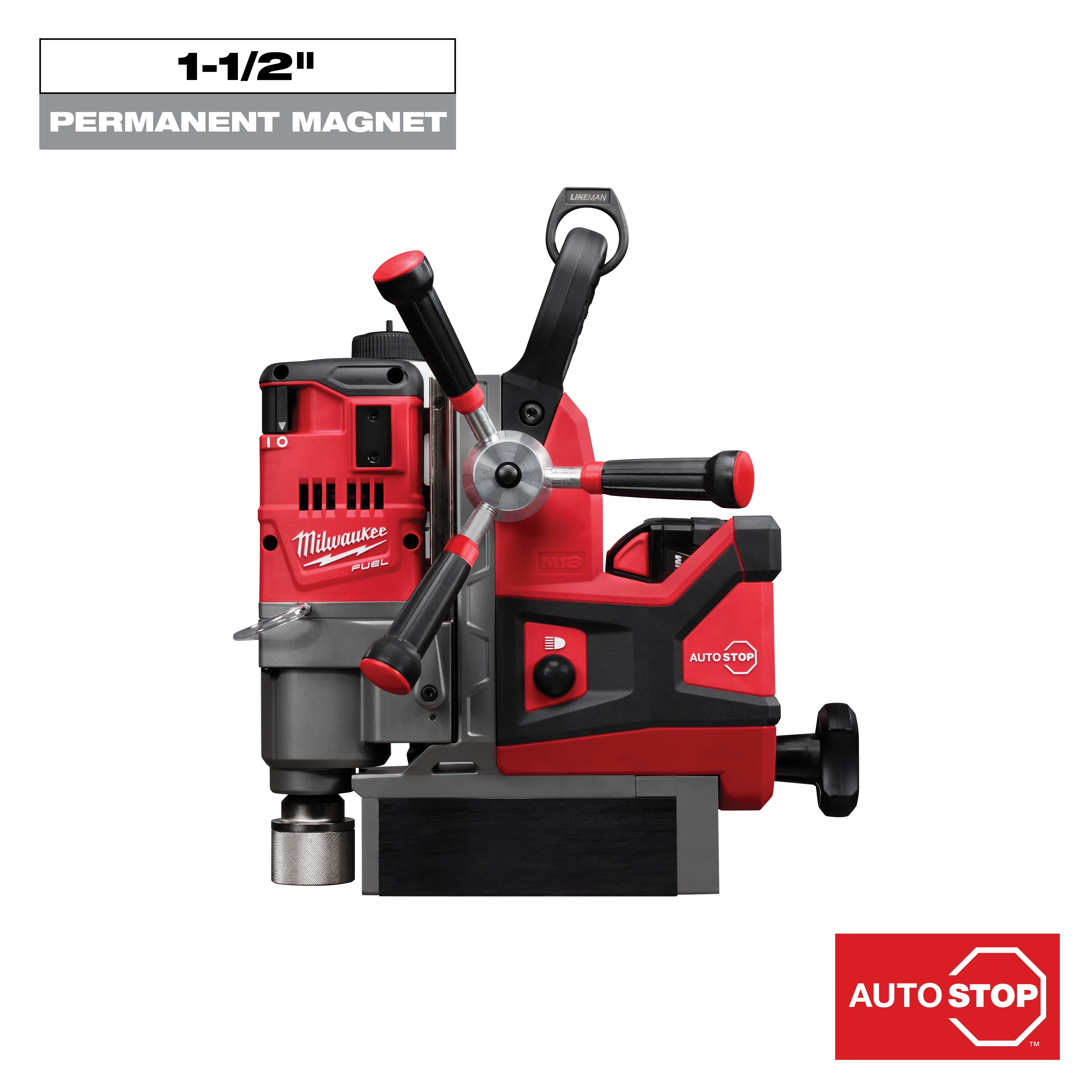

M18 FUEL™ 1-1/2" Lineman Magnetic Drill High Demand™ Kit

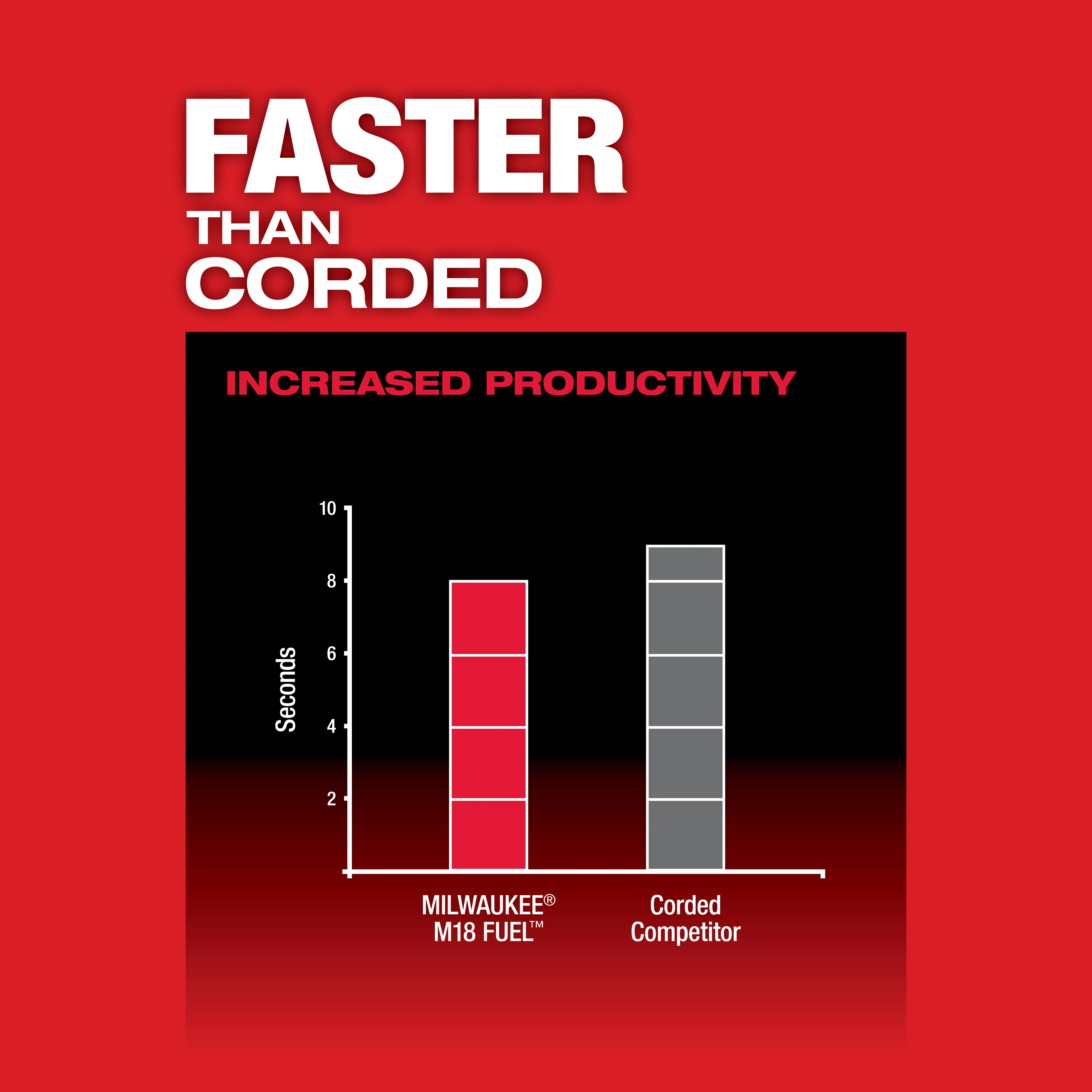

Our M18 FUEL™ 1-1/2” Magnetic Drill drills faster than the number one corded competitor, delivers the strongest magnetic hold on 1/4” steel providing a safer drilling environment in this material, and drills up to (76) 13/16” holes per charge. The M18 FUEL™ 1-1/2” Magnetic Drill delivers safer drilling on ¼” steel by providing the industry’s strongest holding force on this material. By utilizing permanent magnets, the magnetic base operates without electricity; ensuring that the magnet does not deactivate if the battery is drained. Equipped with Auto-Stop lift-off detection, power to the motor is automatically cut if excess rotational motion is detected while drilling. Powered by a MILWAUKEE® POWERSTATE™ Brushless Motor, both drills are faster than their corded counterparts and deliver the same 1-1/2” annular cutter capacity. REDLINK PLUS™ Intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. The M18™ REDLITHIUM™ FORGE™ XC8.0 Battery Packs deliver HIGH OUTPUT™ 12.0 power in a smaller size, high-speed cooling for less downtime in high-demand applications, 35-minute supercharge to 80%, and the longest life vs REDLITHIUM™ batteries. The M18 FUEL™ 1-1/2” Magnetic Drill delivers power and portability for tough drilling applications.

Includes

(2) M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 Battery(48-11-1880)
(1) Safety Strap
(1) Magnetic Lubrication Tank
(1) Chuck Key
(1) Carrying Case
(1) AC/DC Vehicle Charger
(1) 3/4” Weldon to ½” Chuck adapter
(2) 1” Retractable Pilot Pin
M18 FUEL LINEMAN MAG DRILL

M18 FUEL™ 1-1/2" Lineman Magnetic Drill High Demand™ Kit

Key FeaturesSpecificationsReviews

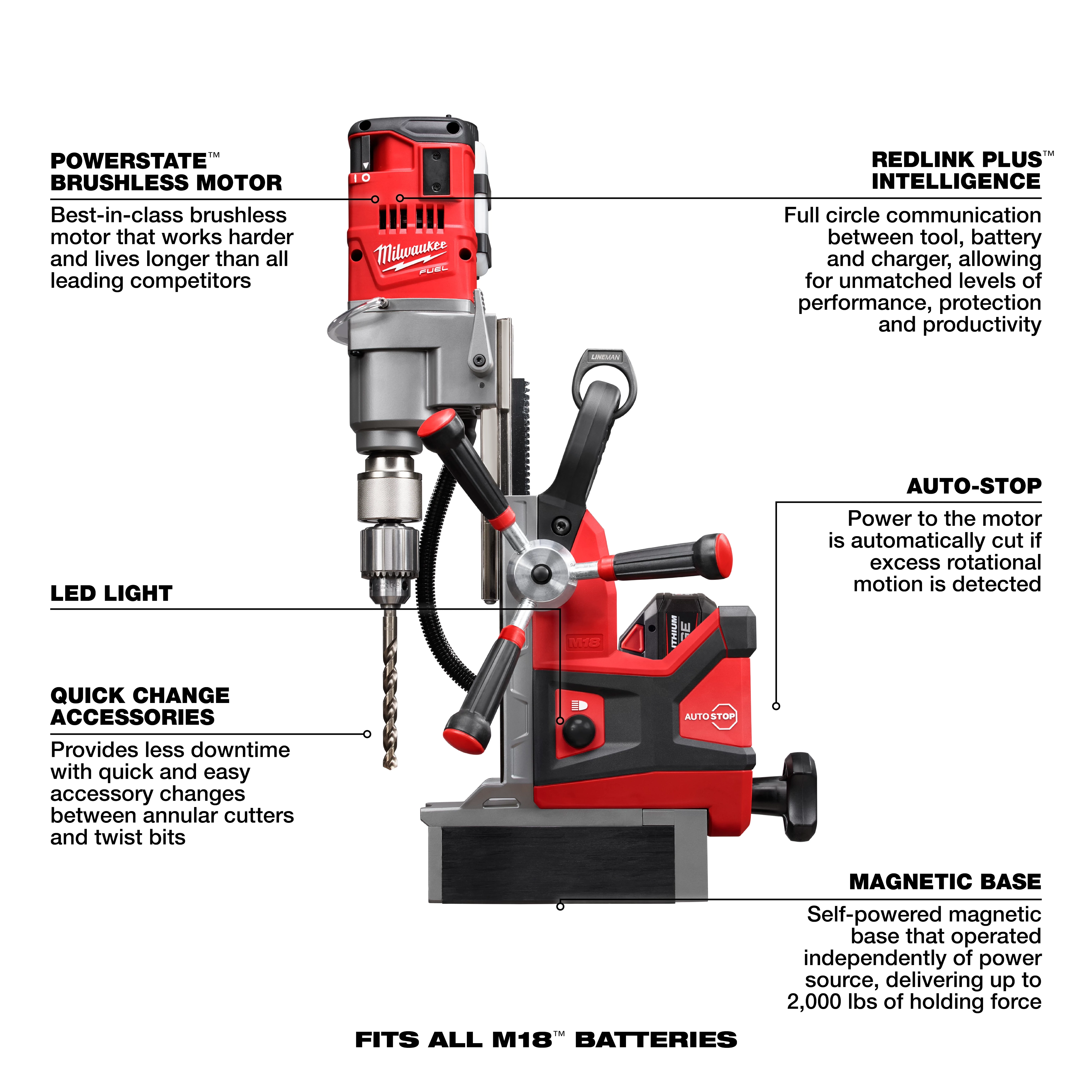

Auto-Stop Lift Off Detection
POWERSTATE™ Brushless Motor delivers longer life and higher performance
REDLINK PLUS intelligence: provides optimized performance and overload protection using total system communication between tool, battery and charger
1-1/2" Annular Cutter Capacity1/2" Twist Bit Capacity
2 Speed Gear Box: 400/690 RPM
Stroke Length: 5-3/4"
Motor Head Adjustment: 5-1/8"

You May Also Like...

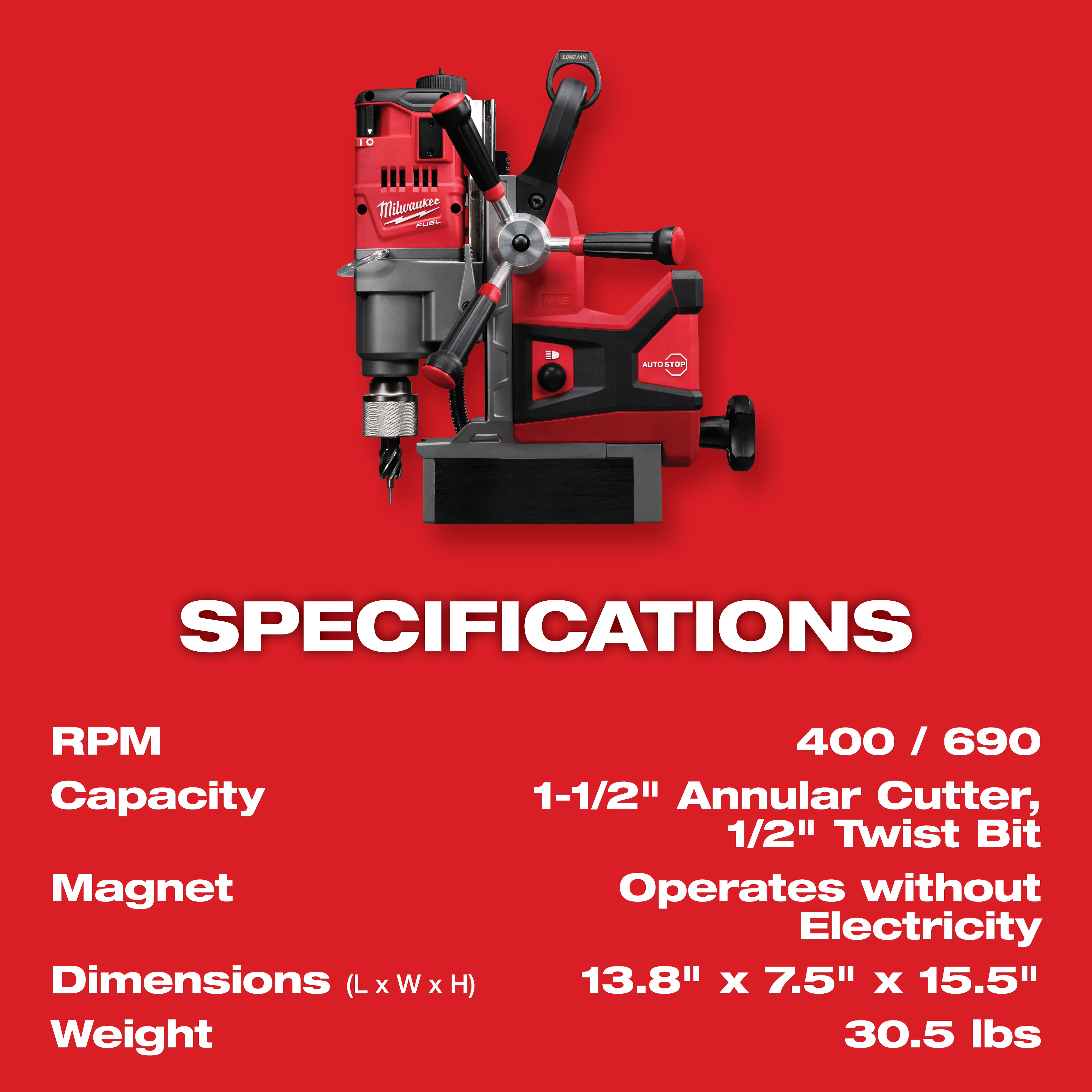

Product Specifications

Chuck Type
All Metal
Chuck Size
1-1/2"
Tool Warranty
5 Year Limited Warranty
Power Source
Cordless
Motor Type
POWERSTATE Brushless
Material Composition
Forged Steel
Length
13.8 in
Weight
30.9 lb
Height
15.5 in
Width
7.5 in
Badge Branding
FUEL™
Fuel
Yes
Voltage
18V
Brushless
Yes
Battery System
M18
Maximum RPM
690
RPM Range
400 / 690
