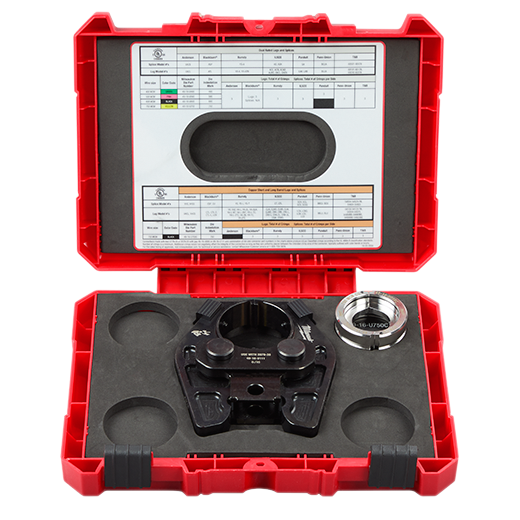

750 MCM Cu/Al Crimping Jaw w/ 750 MCM Cu 6T U-Style Die

The 750 MCM Copper 6T U Style Die is the Most Accurate Way to Crimp, producing cULus classified crimps according to the UL 486A-B classification standards for #8 - 750 MCM Copper & Dual Rated Anderson, Blackburn® Burndy, Ilsco, Panduit, Penn-Union and Thomas & Betts Connectors. MILWAUKEE® U Style Dies feature vivid wire size markings and industry-standard color markings. The copper crimper die also imprints wire size onto the connector after crimp completion. The crimping die is made for commercial electricians and is designed to provide you with ease of use and easy inspection. For use with our M18™ Force Logic™ 600 MCM Crimper (2679-20) and M18™ 750 MCM U Style Crimping Jaw (49-16-U111).

  • 100% Inspected for Critical Dimensions & Serialized: Ensures Crimp Quality
  • Die Size Pressed into Connector matches wire size Eliminating Cross Referencing
  • Proprietary Jaw: Holds Connector for Instant Alignment
  • Stainless Steel Finish: Protects against Corrosion
  • Wire Size Marked on Each Die: Easy Identification
You May Also Like...

Product Specifications

Length 2.68 in
Weight 5.06 lb
Height 8.03 in
Width 10.63 in
