M18™ 200’ Mid-Stiff Pipeline Inspection Reel

Our M18™ 200’ Mid-Stiff Pipeline Inspection Reel has a moderately stiff push cable providing a good balance of distance and the ability to navigate bends in 2”-6” lines. The inspection reel is powered by the M18™ 500 GB Control Hub, part of the M18™ Modular Pipeline Inspection System. Featuring the industry’s shortest 25 mm 1080p self-leveling HD camera head, the ability to digitally zoom up to 4X and optimize light output inside of pipes, technicians can now see more in drain lines than ever before. Our system features a telescoping handle and wide wheelbase making transportation on and off the job site easier than ever. Each reel includes a camera head sleeve to protect the camera from impact and skids designed to center the camera in pipes.

Includes

(1)
M18™ 200’ Mid-Stiff Pipeline Inspection Reel (2975-20)
(1) Small Camera Skid (1) Medium Camera Skids (4) Star Skids

200' MID-STIFF PIPELINE
INSPECTION SYSTEM

CLEAREST IMAGE.
EASIEST INSPECTIONS.

HD CAMERA DELIVERS 4X DIGITAL ZOOM

  • 25 mm Self-Leveling Camera Head
  • Highest Resolution during live streaming, picture, and video
  • CAPTURE, CREATE AND SHARE TO MOBILE DEVICES

  • Save HD images and video recordings to M18™ 500 GB Control Hub
  • Send saved recordings faster directly from mobile devices
  • EXTENSION HANDLE AND WIDE WHEELBASE PROVIDE MAXIMUM STABILITY

  • Six inch all-terrain wheels for better navigation on uneven surfaces
  • Extendable handle provides comfortable transport to and from job
  • M18

    PERFORMANCE DRIVEN
    TRADE FOCUSED
    SYSTEM WIDE

    • 1080p camera resolution providing the industry's clearest image inside of drain lines

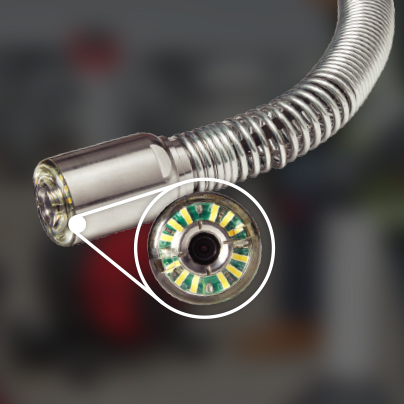

    • 25 mm self-leveling HD camera head with Sapphire Crystal lens
    • 200' 10 mm Push Cable provides best mix of stiffness, flexibility and length.
    • Powered by the M18™ 500GB Control Hub

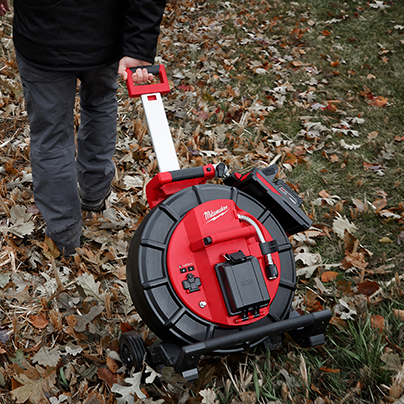

    • Telescoping handle and wide wheelbase provide maximum stability
    • Onboard monitor mount for viewing and transportation
    • Swap batteries without system shutdown
    You May Also Like...

    Product Specifications

    Line Type Main Lines, Sewer Lines
    Tool Warranty 5 Year (Tool), 3 Years (Battery)
    Battery Type M18
    Length 16 in
    Weight 46 lb
    Height 26 in
    Width 20.76 in
    Push Cable Stiffness Mid-Stiff
    Push Cable length 200'
    Drain Line Capacity 2"-6"
    Push Cable Diameter 10mm
    Camera Resolution 1080p
    Camera Head Ingress Protection IP67
    Sonde Frequency 512Hz, 640Hz, 33kHz
    Line Trade Frequency 33kHz, 83kHz
    Video Display M18™ Wireless Monitor or MILWAUKEE® Pipeline Inspection App
    Camera Head Warranty 1 Year
    Power Source Cordless
    Battery System M18
