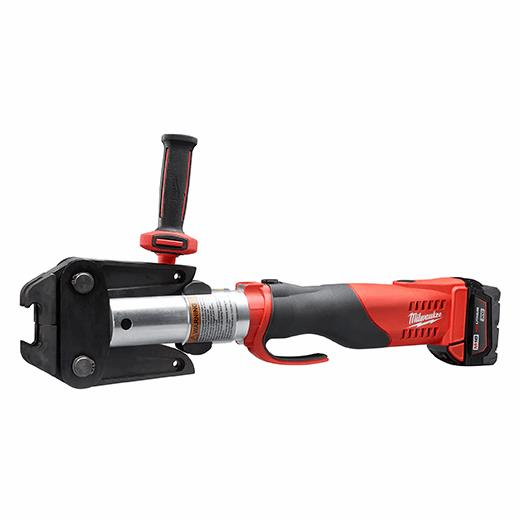

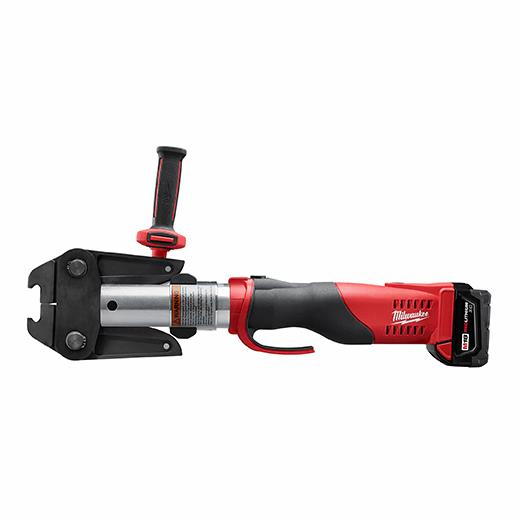

M18™ FORCE LOGIC™ Long Throw Press Tool 1/2" -1" Kit

The M18™ Force Logic™ Long Throw Press Tool is the smallest, lightest and most intelligent extended length press tool in the market today.  Featuring an in-line design, the M18™ Force Logic™ Long Throw Press Tool is not only offer the most ergonomic solution for navigating around installed pipes, but also deliver on the highest level of press accuracy and reliability available on the market. Utilizing Milwaukee® Redlink™  Electronics, the M18™ Force Logic™  Press Tool monitors the force output to ensure quality connections and provide the user peace of mind by visually indicating both a secure connection and when the tool needs calibration. Featuring the best calibration standard in the industry, the tool only require service every 40,000 crimps. This allows users up to 4X more connections between services, keeping the tool on the jobsite up to 4X longer than competitive units.   Powered by the M18™ Red Lithium battery means this is the only press system where you can Cut, Fasten and Connect on One System.
This product is no longer available, however it has been replaced with

M18™ FORCE LOGIC™ Long Throw Press Tool 1/2" -1" Kit

Key FeaturesSpecifications
Powerful hydraulic pump delivers up to 7200 lbs. of force
Includes 6 jaws from 1/2 in. to 1-1/2 in.
Part of the M18™ System, featuring over 125+ tools
Accommodates M18 3 in. and M18 4 in. press rings (sold separately)
Performs 40,000 crimps between service inspections
Batteries recharge in 60 minutes
Compatible with all M18 batteries and chargers
5-year tool warranty; 3-year battery/charger warranty; 2-year jaw warranty
Compatible with all M18 batteries and M18 chargers

You May Also Like...

Product Specifications

Tool Warranty
5 Years
Power Source
Cordless
Length
16.8"
Weight
8 lbs
Width
4.8"
Force
7,200 lbs
Pipe Capacity
1/2" - 4" (Varies by Material)
Approx Cycle Time
5 Seconds
Warranty
5 Year Limited Warranty
Battery
M18™ REDLITHIUM™
Charger
M18™ and M12™ Multi-Voltage Charger
Calibration Interval
50,000 Cycles
Jaw Warranty
2 Year
Jaw Capacity
1/2" to 4" CU and 1/2" to 1" SS
Battery Warranty
2 Year
Voltage
18V
Battery System
M18
