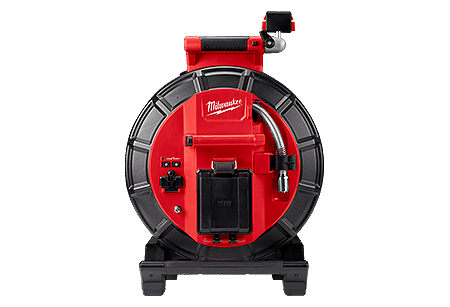

Milwaukee® 120’ Mid-Stiff Pipeline Inspection Reel

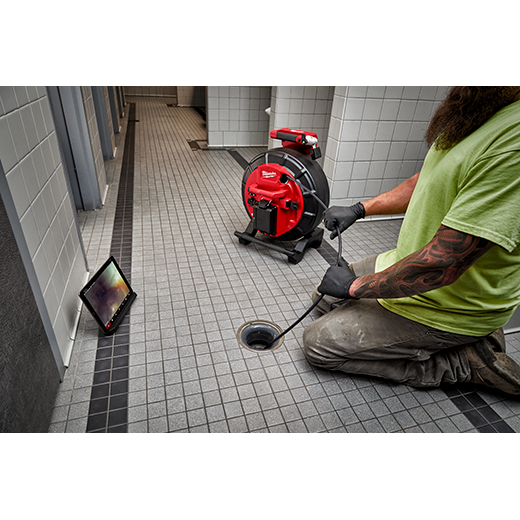

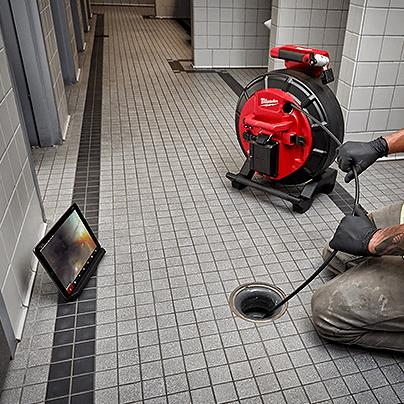

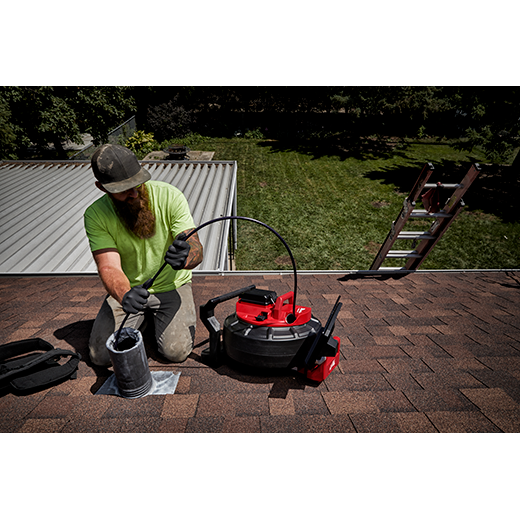

Our 120’ Mid-Stiff Pipeline Inspection Reel, designed for 2”-6” drain lines, is powered by the M18™ 500 GB Control Hub, part of the M18™ Modular Pipeline Inspection System. Featuring the industry’s shortest 25 mm 1080p self-leveling HD camera head, the ability to digitally zoom up to 4X and optimize light output inside of pipes, technicians can now see more in drain lines than ever before. The 120' Pipeline Inspection Reel features a compact design with removable backpack straps, making transportation to any roof, drain, crawl space, or cleanout easier. It comes equipped with small and medium camera skids and a camera head sleeve to center and protect the camera while inside pipes.

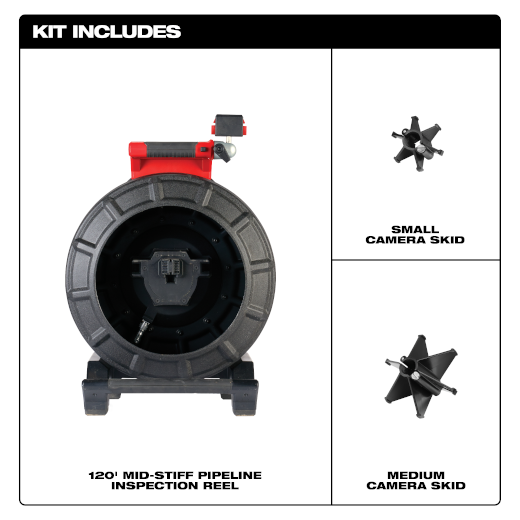

Includes

(1)
Milwaukee® 120’ Mid-Stiff Pipeline Inspection Reel (2973-20)
(1) Medium camera head skid for 25mm camera (1) Small camera head skid for 25mm camera

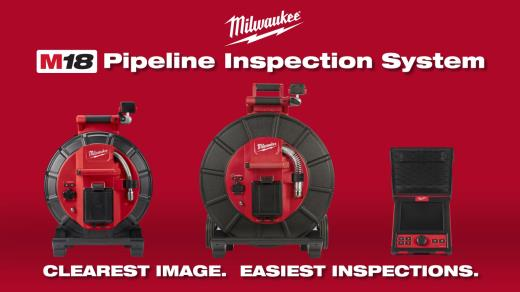

M18™ 120’ PIPELINE
INSPECTION SYSTEM

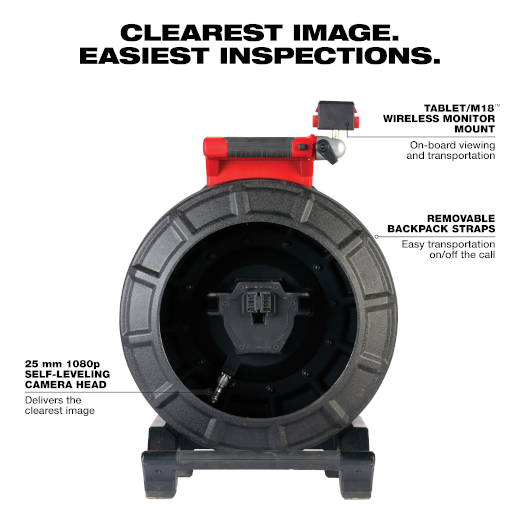

CLEAREST IMAGE.
EASIEST INSPECTIONS.

HD CAMERA DELIVERS 4X DIGITAL ZOOM

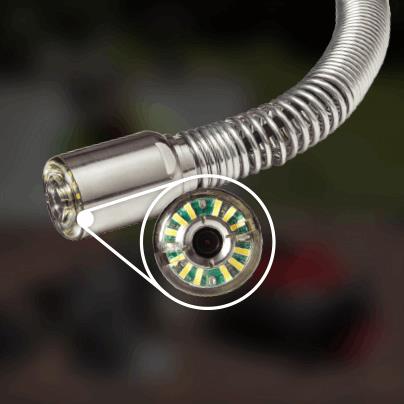

  • 25 mm Self-Leveling Camera Head
  • Highest Resolution during live streaming, picture, and video

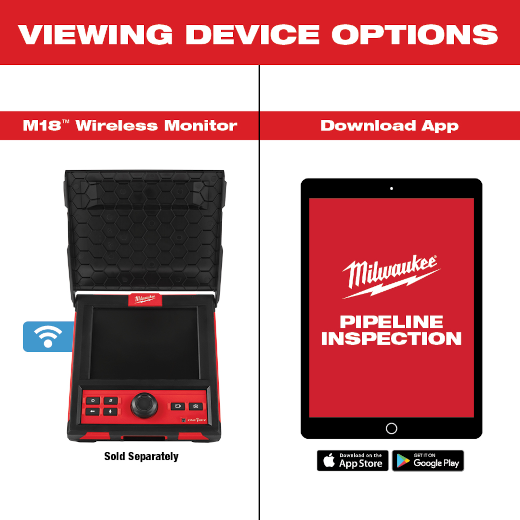

CAPTURE, CREATE AND SHARE TO MOBILE DEVICES

  • Save HD images and video recordings to M18™ 500 GB Control Hub
  • Send saved recordings faster directly from mobile device

MONITOR MOUNT AND BACKPACK STRAPS FOR HANDS-FREE CARRYING

  • Adjustable Monitor Mount for best viewing

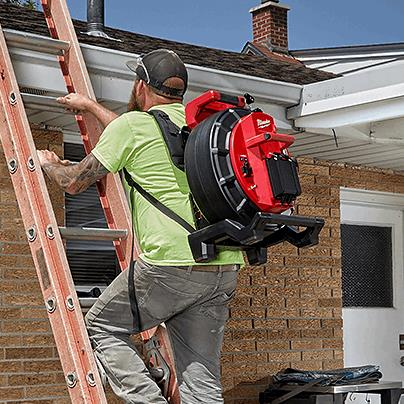

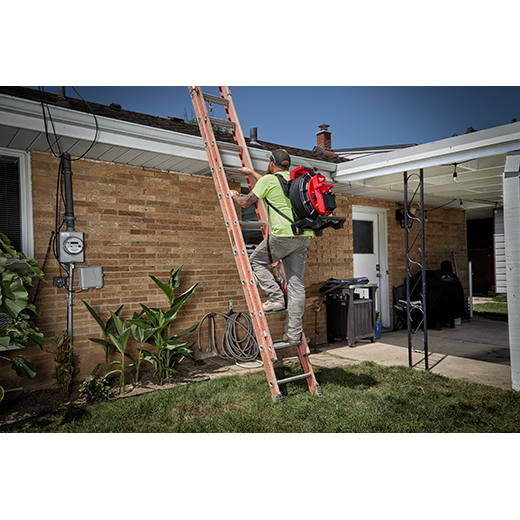

  • Removable backpack straps provide best transportation when accessing roofs
  • 1080p camera resolution providing the industry's clearest image inside of drain lines

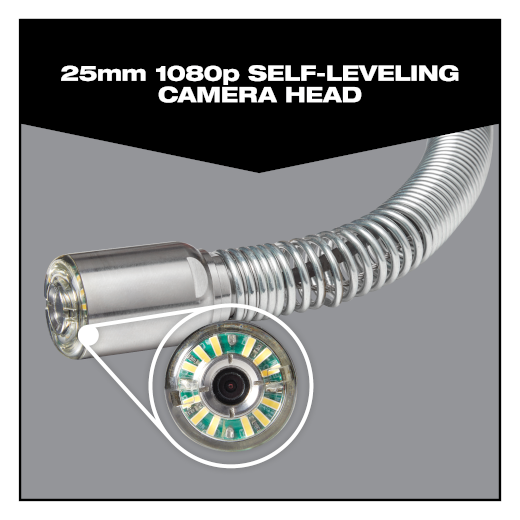

  • 25 mm self-leveling HD camera head with Sapphire Crystal lens
  • 10mm Push Cable Diameter provides best mix of stiffness and flexibility

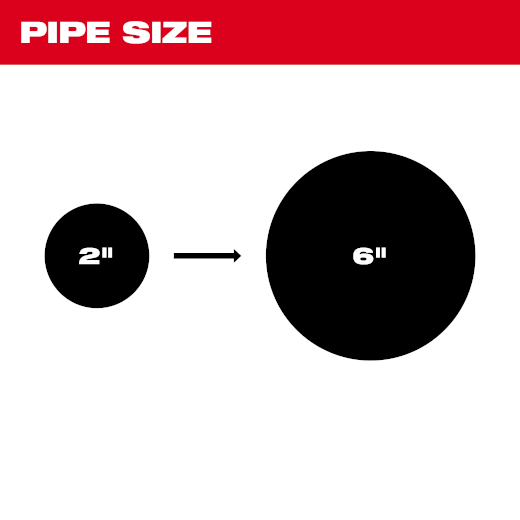

  • Line Capacity: 2"-6"
  • Sonde Frequency: 512Hz, 33 KHz
  • Line Trace Frequency: 33kHz, 83kHz

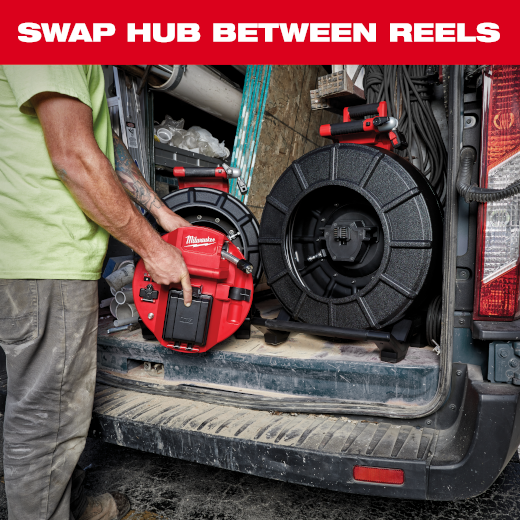

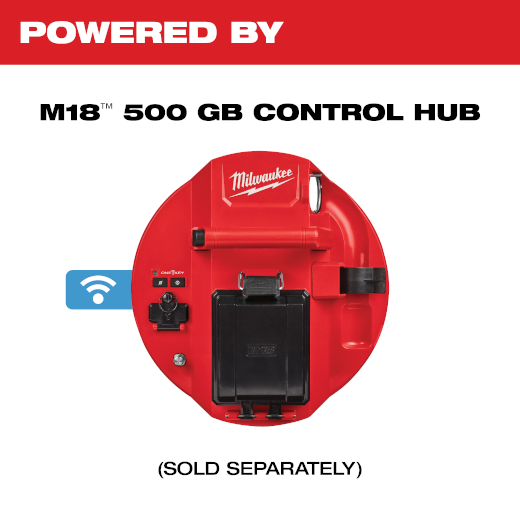

  • Powered by the M18™ 500GB Control Hub
  • Removable backpack straps for hands-free carrying
  • Onboard monitor mount for viewing and transportation
You May Also Like...

Product Specifications

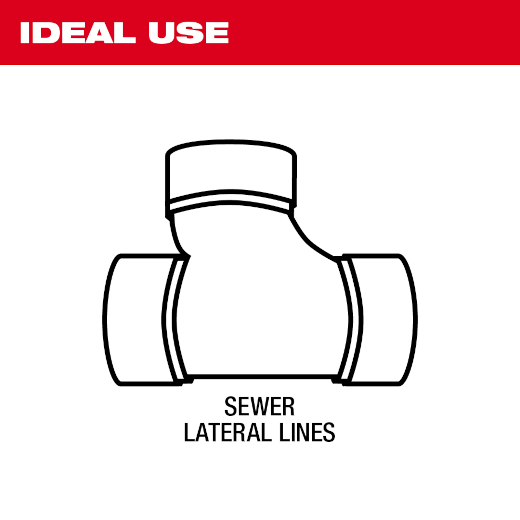

Line Type Main Lines, Sewer Lines
Length 13.3 in
Weight 25.4 lb
Height 22.7 in
Width 17.8 in
Line Capacity 2"-6"
Push cable length 120'
Push Cable Diameter 10mm
Camera resolution 1080p
Camera head Ingress Protection IP67
Sonde Frequency 512 Hz, 33 kHz
Line Trace Frequency 33 kHz, 83 kHz
Camera Head Warranty 1 Year
Power Source Cordless
Battery System M18
