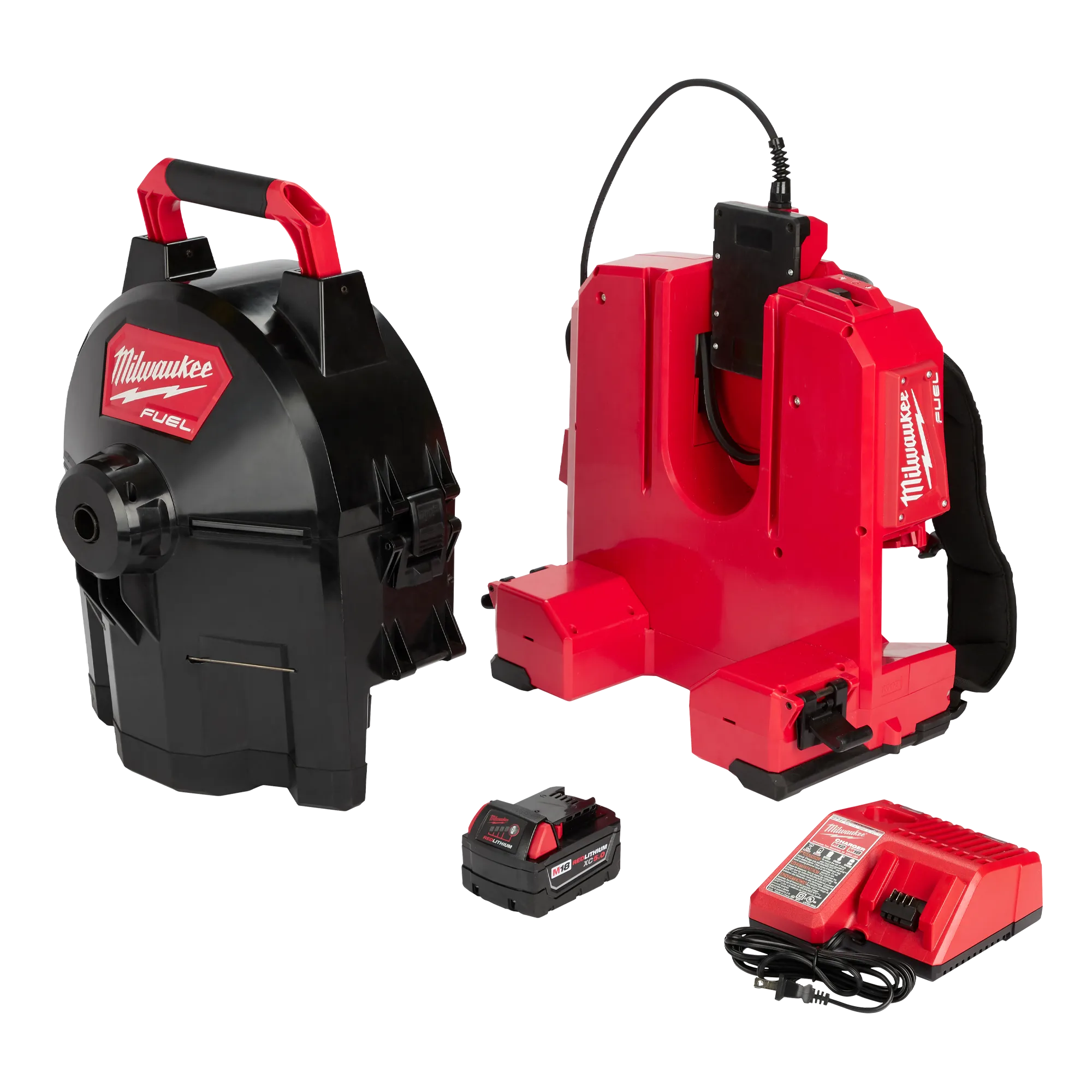

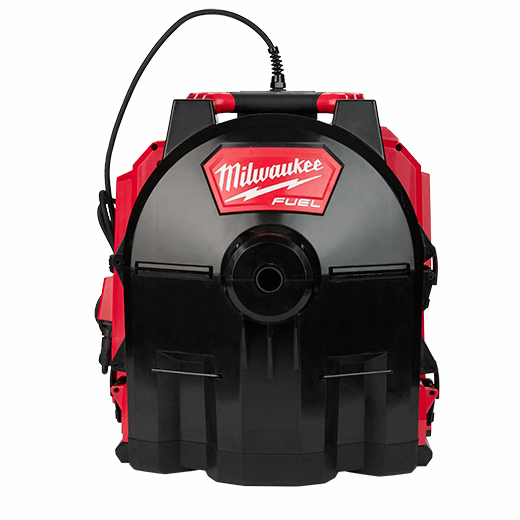

M18 FUEL™ SWITCH PACK™ Sectional Drum Machine for 5/16”-5/8” Cables

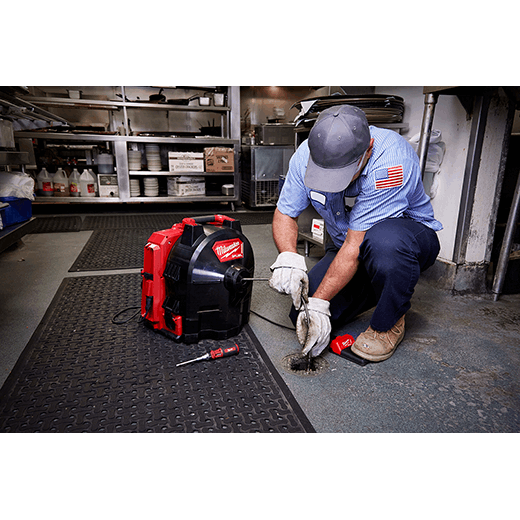

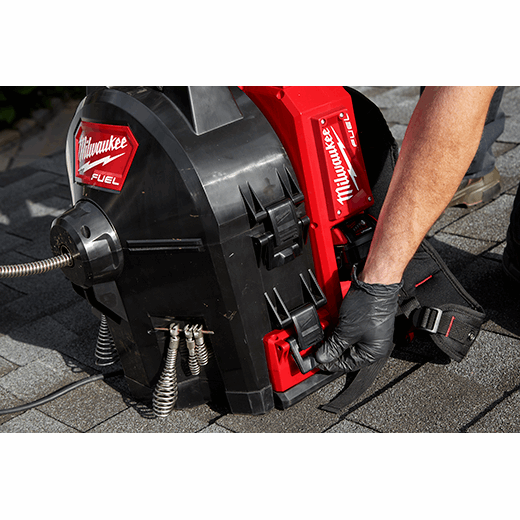

Our M18 FUEL™ SWITCH PACK™ Sectional Drum System 5/16" Kit is the first drain cleaning solution that combines the benefits of sectional and drum machines, creating the single most versatile and mobile machine on the market. The drain cleaning machine allows you to tackle the most frequent challenge of any drain cleaning application - getting the machine onto the job. The SWITCH PACK™ System utilizes a modular design with backpack straps allowing you to easily transport it to any roof, drain, crawl space or cleanout. The tool-free drum connection allows you to quickly switch between cable sizes or add a second drum, allowing you to reach 100' down the line. All MILWAUKEE® SWITCH PACK™ drain cleaning drums are fully enclosed providing you with the best protection against job site mess. The POWERSTATE™ Brushless Motor provides you with more clearing power than corded units for tough jobs in up to 4" drain lines. Built-in REDLINK PLUS™ Intelligence improves your control with an integrated drum brake, slowing the machine up to 5X faster than competitor drums. Our M18™ REDLITHIUM™ battery pack powers through multiple jobs on a single charge, providing cordless mobility, safety, and power supply to the drain cleaning industry. The 5/16" cable is best for use on 1-1/4" - 2-1/2" drain lines. Other cable sizes also available. The SWITCH PACK™ is also compatible with our CABLE DRIVE™ Assembly (47-53-2774) that allows you to automatically feed and retract cable up to 15-20 feet per minute. The CABLE DRIVE™ assembly quickly attaches to and swaps between any Milwaukee SWITCH PACK™ Drum with the Mounting Plate (47-53-2773) installed. This kit includes (1) SWITCH PACK™ Drum w/ Anchor Cable (47-53-2775), (1) M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery Pack (48-11-1850),(1) 5/16" x 75' Inner Core Drop Head Cable w/ RUST GUARD™ Plating (48-53-2772),(1) M18™ & M12™ Multi-Voltage Charger (48-59-1812).

Switch Pack™ Sectional
Drum System

Easiest
Transport
Up To
2X
Clog Breaking
Power
Up To 5x
Faster
Braking

Easiest Transport

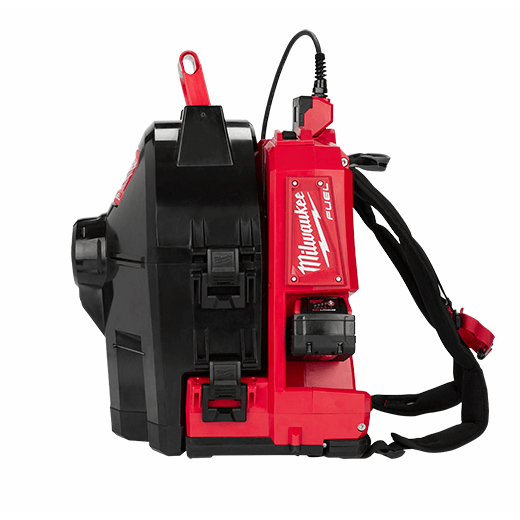

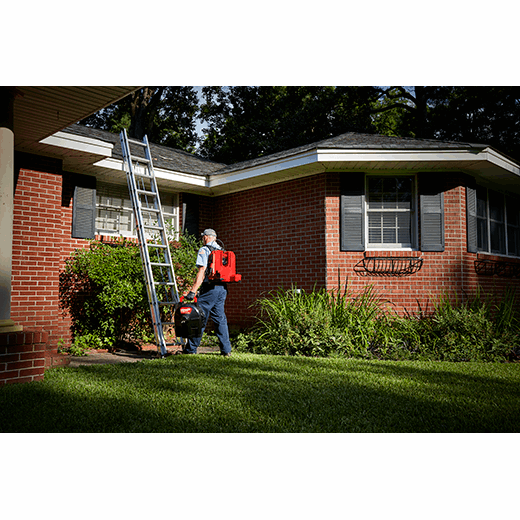

  • Backpack carry, access anywhere

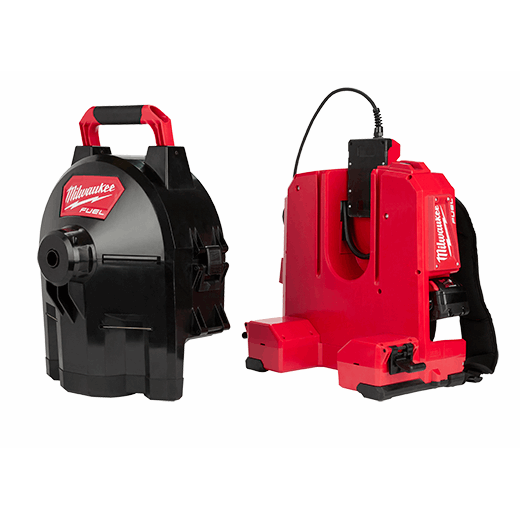

  • The SWITCH PACK™ System's modular design allows users to interchange between cable sizes

Up To 2x Clog Breaking Power

  • POWERSTATE™ Brushless Motor delivers maximum power 100 ft down the line

Up To 5X Faster Braking

  • Integrated Drum Brake
  • REDLINK PLUS™ Intelligence ensures maximum performance under load and improves control throughout the entire process

Add On The Switch Pack System

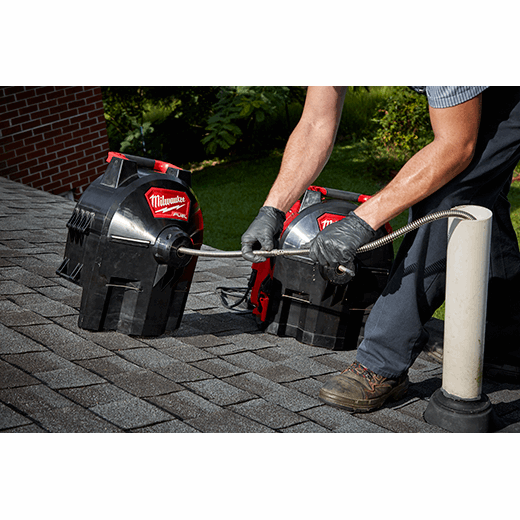

  • Carry multiple drums to easily switch between cable sizes
  • Add on additional drum to reach 100 ft
M18

PERFORMANCE DRIVEN
TRADE FOCUSED
SYSTEM WIDE

  • SWITCH PACK™ drums: interchange and connect various cable drums up to 100 ft.
  • Built-in backpack straps: easiest transport
  • Integrated drum brake: electronically slows drum up to 5-times faster than competitor drum machines

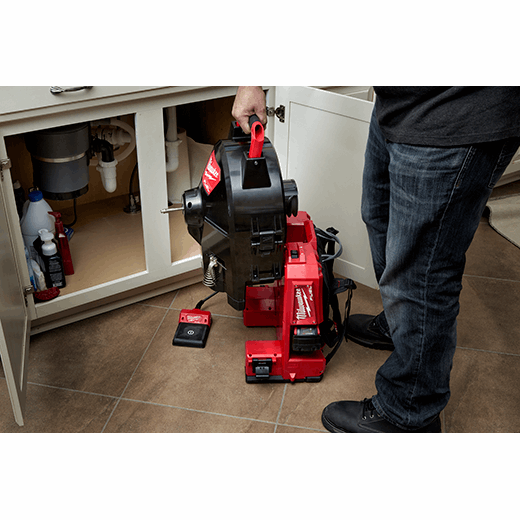

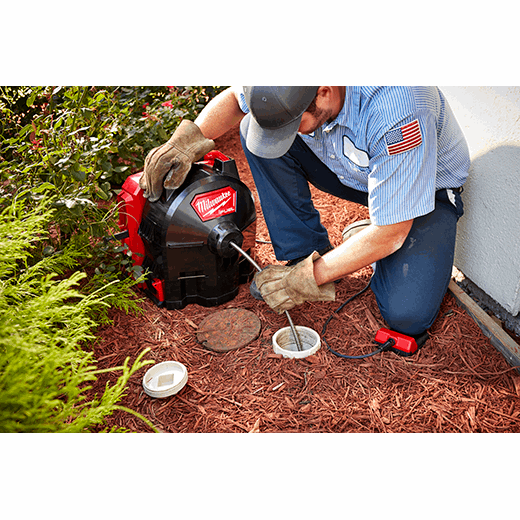

  • Electronic foot pedal with non-slip grip: maximum durability
  • Fully enclosed drum: best protection and mess containment
  • Drain line capacity: 100 ft. x 1/2 in. inner core cable; 100 ft. x 5/8 in. open wind cable
  • SWITCH PACK™ drum capacity: 75 ft. x 5/16 in. inner core cable; 50 ft. x 3/8 in. and 1/2 in. inner core cable; 50 ft. x 5/8 in. open wind cable
  • 250 RPM spin speed
  • On-tool accessory attachment storage
  • 5-year tool warranty, 3-year battery warranty
  • Compatible with non-Milwaukee cables
You May Also Like...

See Milwaukee Drain Cleaning Solutions In Action

See the Full Line of
Sewer & Drain Maintenance Equipment

Battery Specifications

Voltage 18V
Battery Type 18 Volt Lithium Ion

Product Specifications

Line Type Sink Lines, Branch Lines, Main Lines
Tool Warranty 5-Year Tool/2-Year Cable/3-Year Battery
Power Source Cordless
Motor Type Brushless
Length 15.75"
Weight 28.10 lbs
Height 17.75"
Width 15.00"
Accessory Attachment Storage On-Tool
Back Pack Straps Yes
Drain Line Capacity 100' x 1/2" Inner Core Cable; 100' x 5/8" Open Wind Cable
Integrated Drum Brake Yes
M18 Drum Capacity Inner Core Cables 5/16" x 50', Best For 1-1/4" - 2-1/2" drain lines, 3/8" x 35' Best For 2" - 3" drain lines, 1/2" x 50', Best For 3" - 4" drain lines, Open Wind Cables: 5/8" x 50', Best For 1-1/4" - 3" drain lines (soft blockages)
Spin Speed 250 RPM
Warranty 5 Year Tool/2-Year Cable/3-Year Battery
Accepts Other Brand Cables Yes
Maximum Drain Line Capacity 1-1/4" - 4" up to 100' (not for roots)
Electric Foot Pedal Yes
M18 Drum Capacity Open Wind Cables 5/16" x 50', Best For 1-1/4" - 2-1/2" drain lines, 3/8" x 35' Best For 2" - 3" drain lines, 1/2" x 50', Best For 3" - 4" drain lines, Open Wind Cables: 5/8" x 50', Best For 1-1/4" - 3" drain lines (soft blockages)
Battery System M18
