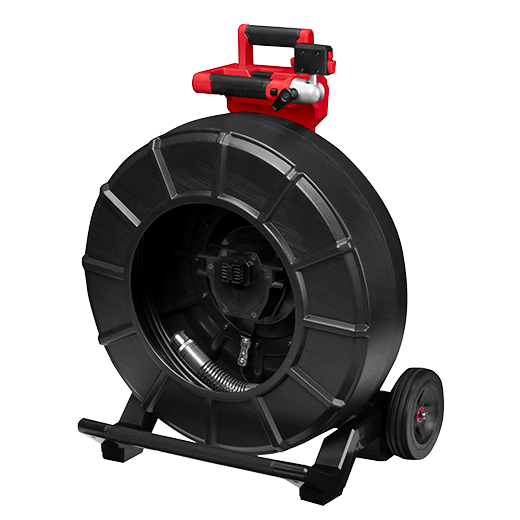

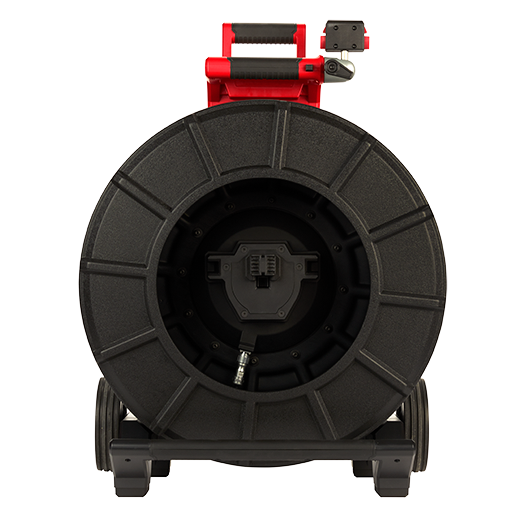

200’ Pipeline Inspection Reel

Our 200’ Pipeline Inspection Reel designed for 3”-10” drain lines is powered by the M18™ 500 GB Control Hub and is part of the MILWAUKEE® M18™ Modular Pipeline Inspection System. Featuring the industry’s shortest 34 mm 1080p HD self-leveling camera head, and the ability to digitally zoom up to 4X and optimize light output inside of pipes, technicians can now see more in drain lines than ever before. The sewer line camera has a telescoping handle and wide wheelbase making transportation on and off the job easier than ever. The 200’ Pipeline Inspection Reel comes equipped with small and medium camera skids as well as a camera head sleeve to center and protect the camera while inside pipes.

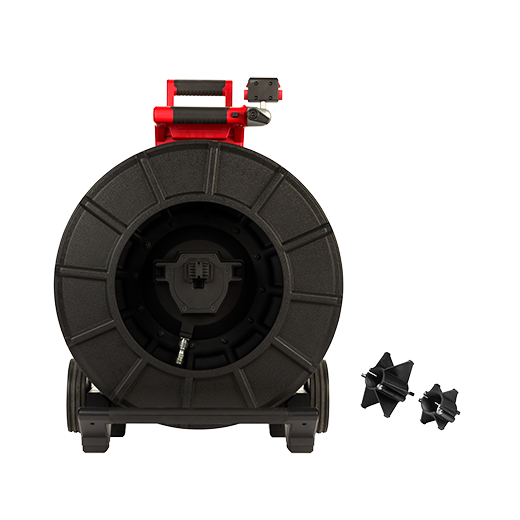

Includes

(1)
200’ Pipeline Inspection Reel (2974-20)
(1) Medium camera head skid for 34mm camera (1) Small camera head skid for 34mm camera

M18™ 200’ PIPELINE
INSPECTION SYSTEM

CLEAREST IMAGE.
EASIEST INSPECTIONS.

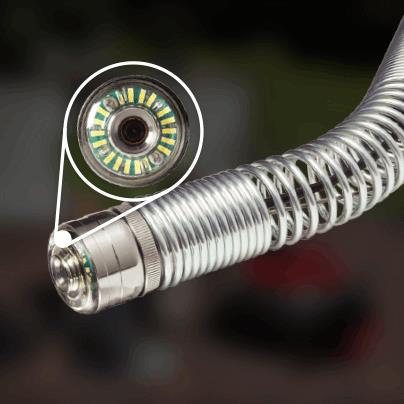

HD CAMERA DELIVERS 4X DIGITAL ZOOM

  • 34 mm Self-Leveling Camera Head
  • Highest Resolution during live streaming, picture, and video

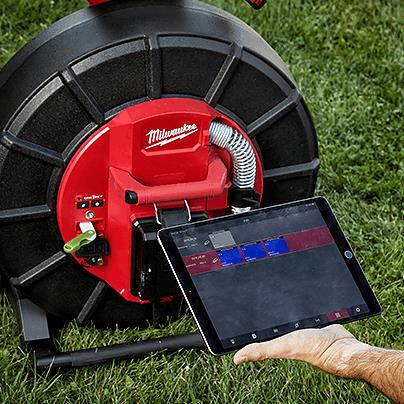

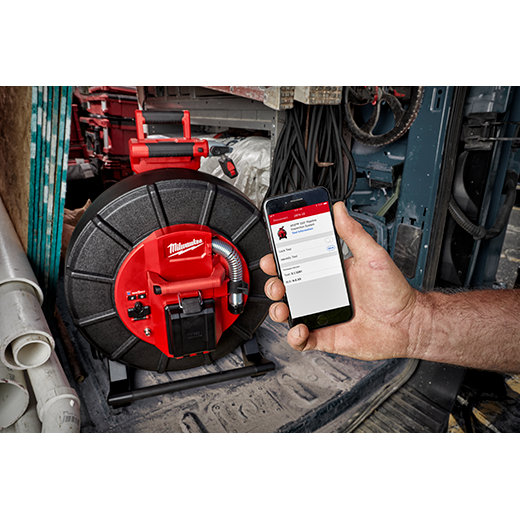

CAPTURE, CREATE AND SHARE TO MOBILE DEVICES

  • Save HD images and video recordings to M18™ 500 GB Control Hub
  • Send saved recordings faster directly from mobile device

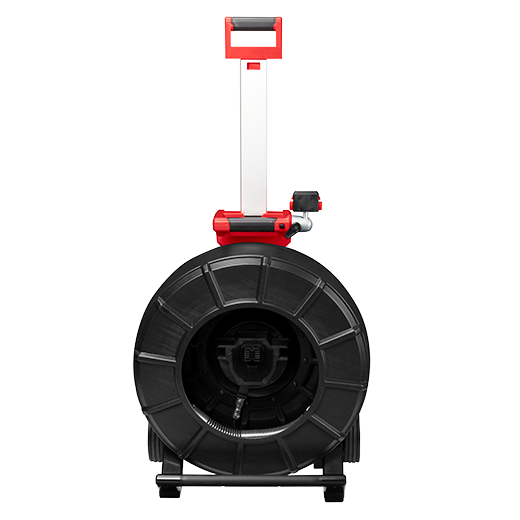

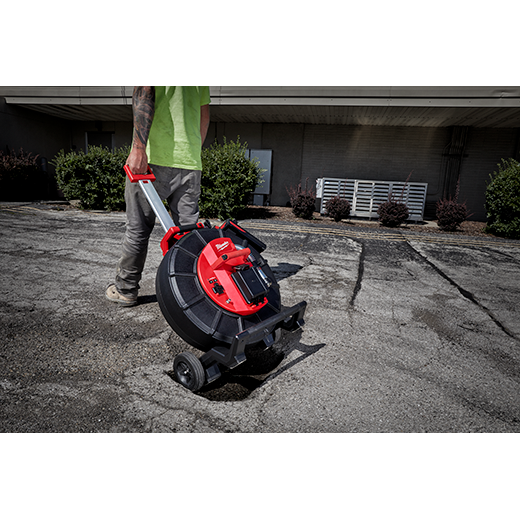

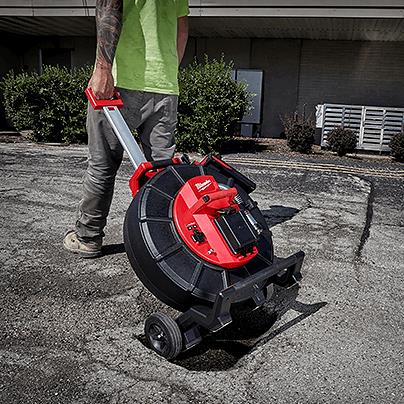

EXTENSION HANDLE AND WIDE WHEELBASE PROVIDE MAXIMUM STABILITY

  • Six inch all terrain wheels for better navigation on uneven surfaces
  • 19” Extendable handle provides comfortable transport to and from job
  • 1080p camera resolution providing the industry's clearest image inside of drain lines
  • 34 mm self-leveling camera head
  • 12 mm Push Cable Diameter provides stiffness to push maximum distance
  • Powered by the M18™ 500GB Control Hub

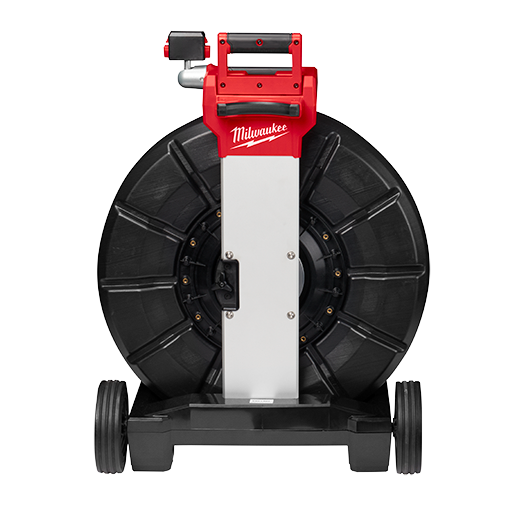

  • Telescoping handle and wide wheelbase provide maximum stability
  • On board monitor mount for viewing and transportation
  • Swap batteries without system shutdown
You May Also Like...

See the Full Line of
Sewer & Drain Maintenance Equipment

Product Specifications

Tool Warranty 5 Year
Push cable length 200'
Line Capacity 3" - 10" drain lines
Push Cable Diameter 12mm
Camera Resolution 1080P
Camera head Ingress protection IP67
Sonde Frequency 512kHz, 640Hz, 33kHz
Line Trace frequency 33kHz, 83kHz
Video Display M18 Wireless Monitor or Milwaukee® Pipeline Inspection App
Weight 48.3lbs
Camera Head Warranty 1 Year
