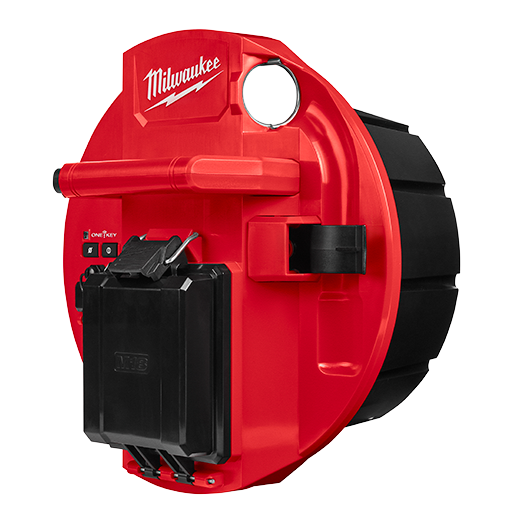

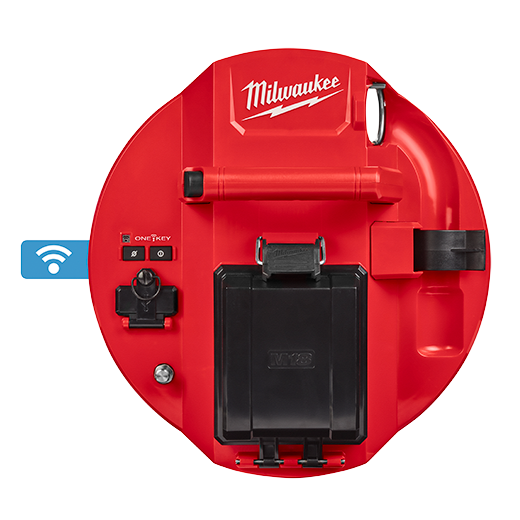

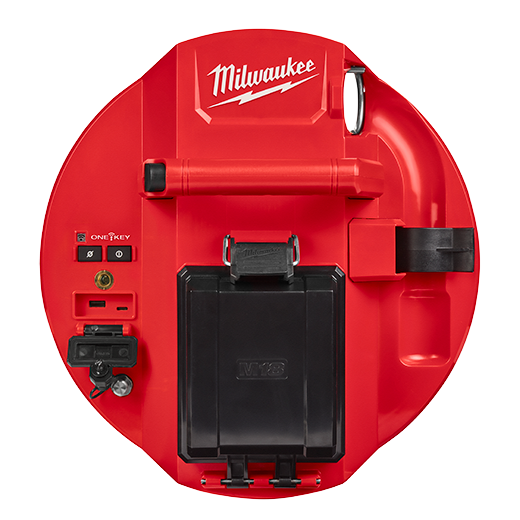

M18™ 500GB Control Hub (Tool Only)

Our M18™ 500GB Control Hub provides the most versatile pipeline inspection experience. The control hub is compatible with all MILWAUKEE® Modular Pipeline Inspection reels; it easily swaps between reel sizes, and wirelessly connects to the M18™ Wireless Monitor or a mobile device for viewing. Equipped with 500GB of internal memory, you're able to store and organize recordings on board, and seamlessly share wirelessly to a mobile device or directly to a USB drive. The M18™ 500GB Control Hub features a built-in transmitter that energizes the push cable for line trace capability, making it easier to locate the camera head when in a sewer line. The control hub is compatible with ONE-KEY™ Technology, giving you the ability to track the tool's location, manage it in inventory, and lock the tool out to help protect your investment.

  • Record, Edit & Share to Mobile Devices
  • Swap Batteries without System Shutdown
  • Unmatched Versatility, Control Hub Swaps Between Reels
  • Up to 200' of Wireless or wired connectivity to viewing device
  • On board USB port allows for saving findings on memory stick
  • One-Key™ technology allows for tracking, tool security, and inventory management
  • Up to 9 hours of runtime with an M18™ REDLITHIUM™ 5.0AH Battery
  • Wired connection backup to the M18™ Wireless Monitor via USB-C port
  • Water tight battery door protects against water and debris
  • Integrated handle and latch allow for easy one handed installation
  • Sealed Battery Door
  • Sealed USB Door

Track. Manage.

Track your tool's location from anywhere
Lock your tool and disable remotely
Manage your assets your way
Learn More
You May Also Like...

Product Specifications

Tool Warranty 5 Year
Battery Type M18
Length 12.2"
Video Display M18™ Wireless Monitor or Milwaukee® Pipeline Inspection App
Wireless Range 200 Feet
Runtime 9 hours
Photo Format JPEG
Video Format MPEG4
Internal Storage 500GB
Data Transfer Method USB, wireless to mobile devices
Line Trace Frequency 33 kHz, 83kHz
